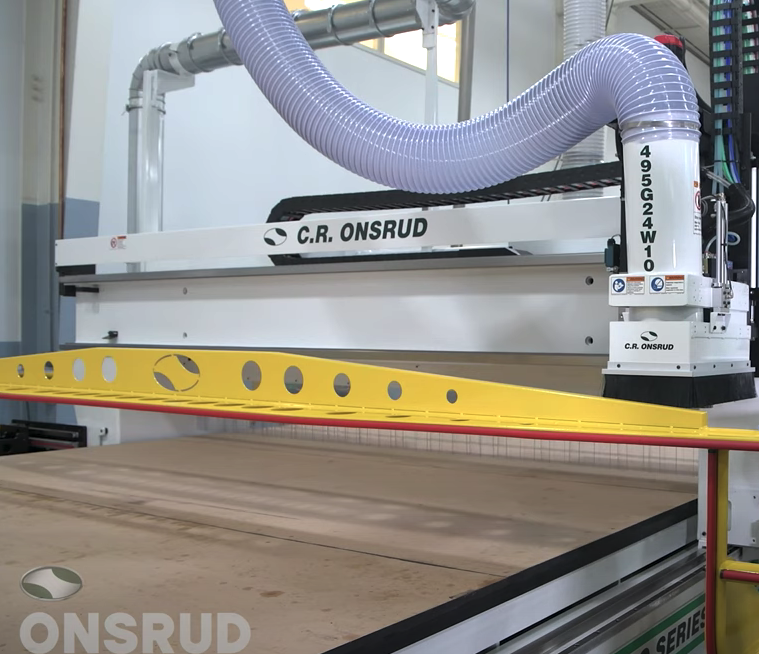

This post presents some options and key features of a customized G-Series for a Ship Building application that processes large format materials for offshore supply vessels, barges, tankers, and ferries. A G-Series of this size (40โฒ x 10โฒ Table Size) is typically used by the RV, aerospace, and ship building industries to cut stacks of aluminum skins, composite structures, friction stir welded panels, nested sheet metal parts, and other large components.
- 40โฒ x 10โฒ Table Size. The G-Series is available in a wide range of table size configurations.
- 18 hp or optional 24 hp spindle.
- 11โณ Z-Stroke.
- Two-piece steel frame design, weighing in at around 26,000 lbs. The two-piece design allows this machine to be shipped very easily to its home in Florida.
- Standard or custom vacuum zones for efficient material hold-down.
- Standard 12-position rotary automatic tool changer.
- FANUCยฎ controls, servos and drives provide, without question, the most reliable solution in the market. FANUC advantages:
- The largest control manufacturer in the world.
- Parts guaranteed for the life of the controller.
- Peace of mind when it comes to reliability and longevity. They measure their downtime in decades: 52 years mean time between failures.
- Every C.R. Onsrud FANUC control comes standard with the FANUC interface as well as our own user-friendly, touchscreen HMI, making it very simple for you to learn and operate.
- Manufactured in America. Designed, fabricated, machined, painted, assembled, and shipped from our factory in Troutman, NC.
- Numerous other options and capabilities are available, including thru-tool coolant, drill blocks, automatic tool measuring devices, enclosures, and much more.
If you have any questions about the G-Series or our other CNC machinery offerings, please call us at: 704-508-7000 or reach out via email: info@cronsrud.com.
* Specifications/Options may vary on certain machine sizes, controls, and spindles. Specifications are approximate and subject to change.
