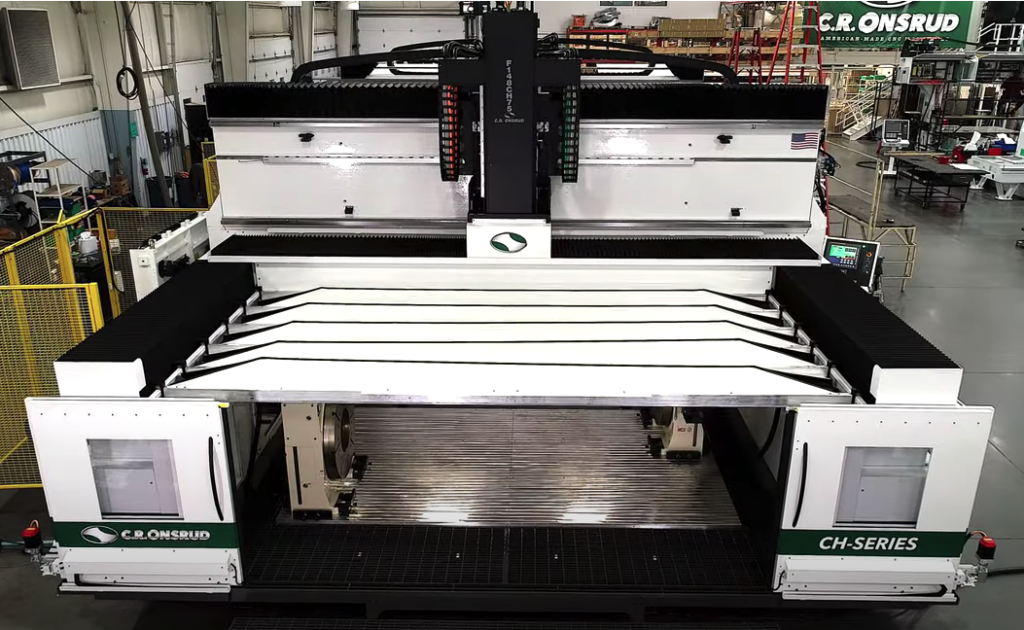

In this post, Tom Lesch with C.R. Onsrud (Troutman, North Carolina) introduces the 5-axis, fully enclosed CH-Series (aka Compact High Rail) that is being built for a client. The Compact High Rail is for anyone who needs to cut aluminum, composites, carbon fiber, fiberglass, reinforced plastics, honeycomb core, and other similar materials. Typical customers are those in the aerospace, boating, and automotive industries.
Some options and key features of the CH-Series machine include:
- 12โฒ x 7โฒ Table Size
We are capable of building larger machine formats (e.g., 12โฒ x 10โฒ, 16โฒ x 10โฒ) and can go all the way down to our 3-axis machines with a 4โฒ x 8โฒ table size.
- Standard 15 hp spindle (up to 75 hp option)
- 52โณ Z-Stroke
- Fully enclosed:
A fully enclosed machine contains debris, reduces noise levels, protects your electronics and mechanical drives from both wet and dry machining, and safely isolates the operator from the machining zone and airborne particles.
- Fully automated retractable doors:
These doors open to give you full access to the machine bed.
- Fully retractable roof:
A roof protects your work area from fine airborne particles or contamination. One that fully opens gives you unobstructed access for a forklift or overhead crane to load heavy materials.
- Heavy-duty thick steel construction.
- Linear scales offered on all axes for high precision applications.
- Rotary encoders offered for high precision applications.
- Volumetric compensation is also an available option for this machine.
- Chip augers and a chip conveyor move debris out of the work envelope.
- Standard 15-pocket tool changer.
We have a client that requested a 60-pocket tool changer. We can do less or more depending on your needs.
- FANUCยฎ controls, servos and drives provide, without question, the most reliable solution in the market. FANUC advantages:
- The largest control manufacturer in the world.
- Parts guaranteed for the life of the controller.
- Peace of mind when it comes to reliability and longevity. They measure their downtime in decades: 52 years mean time between failures.
- Every C.R. Onsrud FANUC control comes standard with the FANUC interface as well as our own user-friendly, touchscreen HMI, making it very simple for you to learn and operate.
- Manufactured in America. Designed, fabricated, machined, painted, assembled, and shipped from our factory in Troutman, NC.
- Tailored to your needs and built to last.
C.R. Onsrud is known throughout the world as a high-quality CNC manufacturer with tremendous support and service. If youโre looking for an industrial machining center to take your business to the next level of productivity for high-mix or high-volume production, give C.R. Onsrud a call at: 704-508-7000 or reach out via email: info@cronsrud.com. We are happy to help you any way we can.
* Specifications/Options may vary on certain machine sizes, controls, and spindles. Specifications are approximate and subject to change.
