Trailer Manufacturing Application

CNC MACHINES FOR TRAILERS

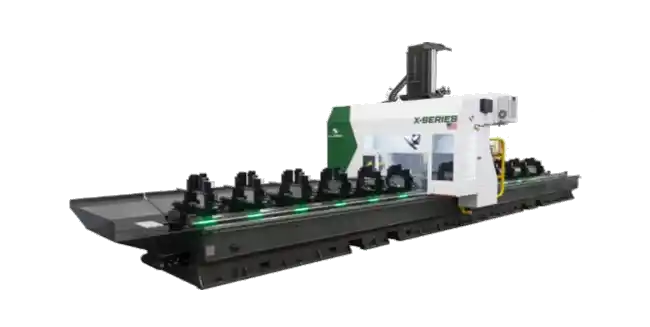

X Series Small
Expand, modernize, or customize your existing line of trailers or launch new products by automating manual processes and increasing your shop’s capacity. Build high-quality trailers, campers, and RVs with reliably fitting components and replacement parts.

Our machines process aluminum, vinyl, wood, Wabash’s DuraPlate®, and many other composite materials. Whether you’re facing a demand for innovative products or a backlog of orders, let us work with you to streamline your manufacturing, reduce costly manufacturing errors, and achieve production goals well beyond the size of your workforce.

Made with an Onsrud

Here are just some examples of the capabilities of our CNC machinery when it comes to manufacturing components for trailers:

Frames and Chassis

Cross Members, Center Tubes, and Vertical Wall Posts

Interior/Exterior Sidewalls and Skins

High-Speed Milling, Drilling, Tapping, and Sawing

Large I-Beams

Tread Plates

Wall and Floor Panels

Cabinetry and Interiors

5-Axis Extrusion Profile Machining

Doors and Hatches

Trailer Nav2

Large Work Envelope for Extra-Large Component Machining

F121g15 Spindle

Largest Z-stroke available

Machines Built For You

Most of our machines are ideal for processing a wide range of materials: aluminum billet, plate, and sheet as well as aluminum extrusions, frp pultrusions, vinyl, wood, composites, and many more that are typically used by trailer manufacturers. We’ve listed the most common models used by the trailer industry, but if these do not meet the needs of your specific application, one of our other machines might be a better fit for your shop floor.

Mega Menu M Series 145m12d (350x270)

M-SERIES 3-Axis

Compact, Economical Moving Gantry

12 hp spindle

24,000 rpm

11″ z-stroke

(4′ x 8′) – (5′ x 20′) table sizes

M-Series
G-SERIES 3-Axis

High-Volume, Heavy-Duty Continuous Processing Moving Gantry with Longest Table Configurations

18, 24 hp spindle

24,000 rpm

11, 18, 28″ z-stroke

5′ – 12′ table widths
10′ – 100′+ table lengths

G-Series
E-SERIES 3-Axis

Powerful and Accurate Heavy-Duty Fixed Bridge with Twin Tables

18, 24, 33 hp spindle

24,000 rpm

11, 18, 28, 40″ z-stroke

(4′ x 5′) – (12′ x 12′) twin table sizes

E-Series

X-SERIES 5-Axis

High-Speed Moving Gantry Linear Extrusion Profile Machining Center

17, 24 hp spindle

24,000 rpm

28″ z-stroke

21″ – 14″ with 13′ – 54′+ x-travel work area

X-Series
EX-SERIES 5-Axis

Extreme, High-Speed Moving Gantry Linear Extrusion Profile Machining Center

24, 33 hp spindle

24,000 rpm

40″ z-stroke

21″ – 14″ with 11′ – 52′+ x-travel work area

EX-Series
ALL CNC MACHINES

Built for

TRAILER MANUFACTURERS

Make walls, floors, roofs, skins, I-beams, and more by integrating our large machining capabilities into your manufacturing process. We offer work envelopes from 4′ x 8′  to 12′  x 100′+ as well as build specialized CNC machinery for linear profile extrusions.

Built for

efficiency

Let us solve your production needs with a machine that fits the flow, and growth, of your trailer manufacturing.

We partner with you to understand your unique production goals. We’ll start with a standard series and model, then customize it to make it exactly the machine you need. We provide the training, support, and service to get your production up and running and to keep it that way.

With our industrial CNC machinery, you can improve part costs, reduce material waste, increase repeatability, and eliminate costly manufacturing errors to maximize the efficiency of your production.

Built for

you

With our user-friendly controls interface and available 24/7 phone support, you’ll perform high-speed milling, drilling, slotting, tapping, sawing, chopping, and trimming of all sizes and shapes of material in a single setup.

Our specialized clamping systems provide effective hold-down, even if your material is slightly warped, so your products come off the machine quickly with surface finishes and consistently accurate angles and undercuts for a reliable fit.
