Inverted Routers
Productivity Made Easy
INVERTED ROUTER
500SS Light Duty
INVERTED ROUTER
750SS Medium Duty
INVERTED ROUTER
900VSX Heavy Duty
The award-winning model 900 VS and 900 VSX are ruggedly built for continuous production duty under severe conditions for up to 3 shifts per day.
The precision spindle is machined and ground from alloy steel for accuracy, rigidity, and long life. The quick-change pulleys provide power and convenience, so you’re machining workpieces quickly and at exactly the right rpm for your application.
10HP
3-phase motor
20,000
RPM
Electronic Variable Speed
47″ x 31″
table size

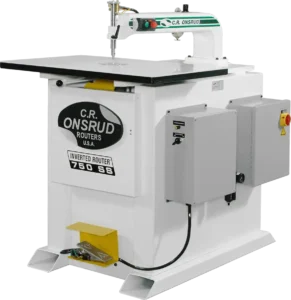

The model 750 SS is a production duty router that is built for heavy-duty machining of light to medium materials up to 3 shifts per day. This mid-priced machine is ideal when you can sacrifice the mass, power, and precision of the 900 VS but can’t sacrifice quality, dependability, or performance.
5HP
3-phase motor
single phase optional
20,000
RPM
Electronic Variable Speed Optional
36″ X 24″
table size
The 500 VS (variable speed) is generally best used in intermittent duty and light production. Machine workpieces over 10x faster and easier than with a band saw, scroll saw, or hand router. The simplicity of this machine makes it easy to produce complex results, including highly detailed shapes, internal cutouts, slotting, hole boring, mortise cuts, and shaping.
3HP
120 Volt Single Phase
10,000-22,000
RPM
Electronic Variable
36″ X 24″
table size
BUILT FOR
WOOD, PLASTIC, ALUMINUM, COMPOSITES
Each one of Onsrud’s Inverted Routers® is capable of plunge routing and profiling both inside and outside cuts in hardwoods, softwoods, manmade woods, nonferrous metals, aluminum, and a variety of plastics and composites. Simplicity of setup and operation makes it easy for patternmakers and new operators to router joints, shape edges, bore holes, cut grooves, and more. Make your own templates directly on the machine to standardize your routing projects for consistently identical parts.
BUILT TO
LAST
In 1915, Oscar Onsrud and his son, Rudolph, invented and patented the first air powered, high-speed spindle. Building on the legacy of innovative manufacturing, Charlie Onsrud patented the Inverted Router®. This American-made, well-designed, durably built machine continues to operate on shop floors worldwide since 1976, giving rise to generations of creative and innovative manufacturers around the globe.
BUILT FOR
YOU
Whether you intend to use your Onsrud Inverted Router for secondary operations after processing on one of our heavy-duty CNC routers, the Onsrud Inverted Router is a proven reliable and indispensable tool.
| Features | 900 VS / VSX | 750 SS | 500 VS |
|---|---|---|---|
| Capacity — Hardwoods* | Up to 1″ | Up to 3/4″ | Up to 1/2″ |
| Capacity — Softwoods* | Up to 2″ | Up to 1″ | Up to 3/4″ |
| Horsepower | 10 hp | 5 hp | 3 hp |
| Motor | 3 phase | 3 phase (single phase optional) | 120 volt single phase |
| Spindle Speed | 20K rpm (VSX - electronic variable) | 20K rpm | 10K-22K rpm |
| Table Size | 47″ x 31″ (1200 mm x 800)* | 36″ x 24″ (900 mm x 600)* | 36″ x 24″ (900 mm x 600)* |
| Maximum Height§ | 4″ (100 mm)†§ | 4″ (100 mm)†§ | 4″ (100 mm)†§ |
| Throat Depth | 36″ (914 mm) | 30″ (765 mm) | 20″ (508 mm) |
| Spindle Plunge | 0-3″ pneumatic | 0-3″ pneumatic | 0-3″ mechanical (w/ foot pedal lock) |
| Depth Stop | 3 position (adjustable) | 3 position (adjustable) | 3 position (adjustable) |
| Automatic Brake | Yes | Yes | No |
| Replaceable Chuck Assembly | Yes (3/4) | No | No |
| Dust Collection | 500 cfm (2000 m3/h) | 4″ (101.6 mm) outlet | 500 cfm (2000 m3/h) | 4″ (101.6 mm) outlet | 200 cfm (2000 m3/h) | 2-5/16″ (58 mm) outlet |
| Compressed Air | 80 psi (6 bar) | 4 cfm (150 slpm‡) | 80 psi (6 bar) | 4 cfm (150 slpm‡) | 80 psi (6 bar) | 4 cfm (150 slpm‡) |
| Quick-Change Pulleys | Yes (900 VS) | No | No |
| Oversized Pulleys | Yes | No | No |
| IEC Style Magnetic Starter w/ Overload Protection | Yes | No | No |
| Shipping Weight | 2000 lbs. (907.2 kg) | 1100 lbs. (499.0 kg) | 420 lbs. (190.5 kg) |
| Set-up Wrenches | Lube Gun | Guide Pins | Collets❡ | Included | Included | Included |
| Toll-Free Factory Tech Support | Yes | Yes | Yes |
| CE Approved | Yes | Yes | Pending |
| 1-Year Limited Warranty | Yes | Yes | Yes |
