MOVING GANTRY STYLE CNC MACHINE
CUSTOM G-SERIES
What happens when you need a larger cutting envelope than standard? C.R. Onsrud starts with our G Series moving gantry CNC Router and injects some “umph.” The thick-wall steel base construction of the Custom G Series is specially engineered, adding internal steel reinforcements to the table and base – allowing for rigid stability during larger material cutting applications. We’ve left nothing to chance and started by designing this CNC machining platform to handle the extreme weight of large blocks of raw non-ferrous metal, or the oversized tooling/fixturing needed for machining composite materials or nested sheet metal parts. The Custom G Series then incorporates our top-rail design technology of the G Series – thus the combination of short, stout, one-piece steel vertical columns delivers more rigidity and generates greater leverage over the bridge than side rail designs found in this CNC machine class. The end-result is an impressive CNC machining platform delivering higher precision for handling the largest workpieces, the heaviest materials (and tooling), with all the unique automation and material handling options C.R. Onsrud offers. This provides the best possible cost per table size relationship available on the market today today. With our Custom G Series CNC router, you have the ability to stack cut aluminum skins or the large, thick assemblies produced by RV, marine, and aircraft manufacturers without blinking an eye.
STANDARD FEATURES
Full 2 Year Warranty
Factory Provided 24/7/365 After Hours Emergency Tech Support
Factory Provided Onsite Machine Installation and Training
Factory Provided Advanced Technical & Applications Support
Factory Provided In Depth Remote Online Diagnostics
4-Pole, reversible, 24,000 RPM High Torque Spindle
HSK-63F Spindle Taper and Tool Holders, with 1 inch (25mm) collet capacity
Over 14 Inches of Z-Axis Clearance & 11 inches of Z-Axis stroke
Finite Element Analysis used in Engineering entire frame
FEA Engineered, Heavy-wall, All-Steel Bridge, Vertical Columns, & Table Support Base
Std. 12 Position, Aggregate Ready, Dynamic Automatic Rotary Tool Changer
Dual Support, Direct Drive, Independent Channel, Design Enhances Accuracy & Rigidity
Compact Design Saves Valuable Shop Floor Space
Intelligent Design Allows for Easy and Unrestricted Access to All Sides of the Machine
Efficient and Effective Integrated Dust Transition that Only Requires a 8 inch Dust Hose
C.R. Onsrud High-Flow Universal Vacuum Table System with Low Vacuum Sensing
3 Independently Controlled Vacuum Zones
Comes Equipped with Choice of Flow Through or Dedicated Spoil Board
FANUC, OSAI, and B&R control options
4-Port Ethernet Connection, USB, and Serial Connectivity, for Easy Network Integration
Full 3D capability with Helical Interpolation
Tables Sizes in Excess of 60 feet long and up to 12 feet wide available
And many more options or accessories
SPECIFICATIONS
MODEL NUMBER | 6-Series | 8-Series | 10-Series | 12-Series |
---|---|---|---|---|
Number of Axes | 3/4 | 3/4 | 3/4 | 3/4 |
Table Size | ** | ** | ** | ** |
Z Clearance | 14" | 14" | 14" | 14" |
X-Axis Travel | ** | ** | ** | ** |
Y-Axis Travel | 89” | 114” | 137" | 161" |
Z-Axis Travel | 11” | 11” | 11” | 11” |
Approx. Footprint | ** | ** | ** | ** |
Machining Speed | 2500 ipm | 2500 ipm | 2500 ipm | 2500 ipm |
X & Y Rapid Traverse | 3500 ipm | 3500 ipm | 3500 ipm | 3500 ipm |
Standard Spindle | 18HP 24,000 rpm | 18HP 24,000 rpm | 18HP 24,000 rpm | 18HP 24,000 rpm |
Tool Shank | HSK 63F | HSK 63F | HSK 63F | HSK 63F |
Standard Tool Capacity | 12 | 12 | 12 | 12 |
Standard Vacuum Zones | ** | ** | ** | ** |
Please Note: ** Size is dependent on machine length and configuration

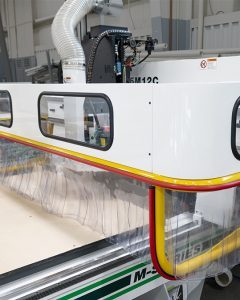

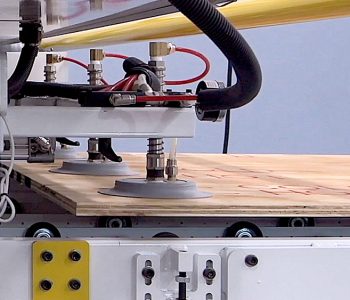

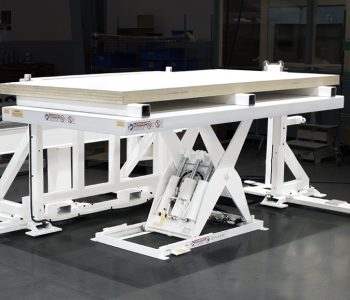

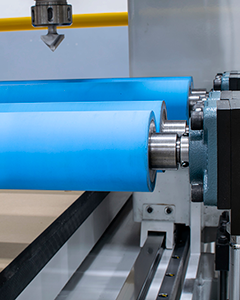

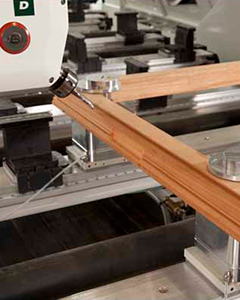

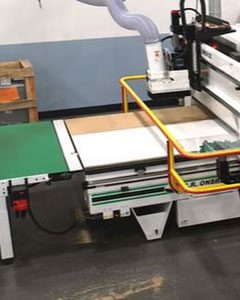

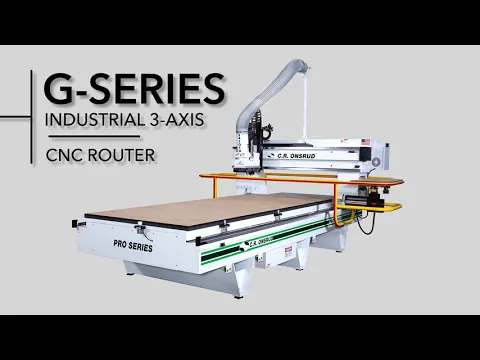

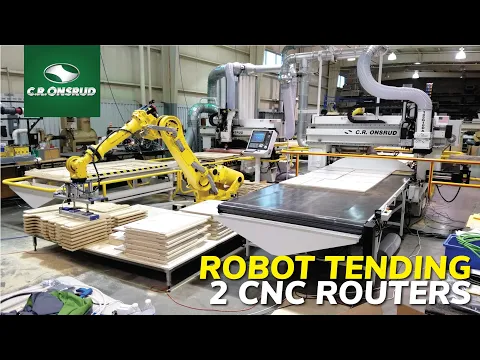

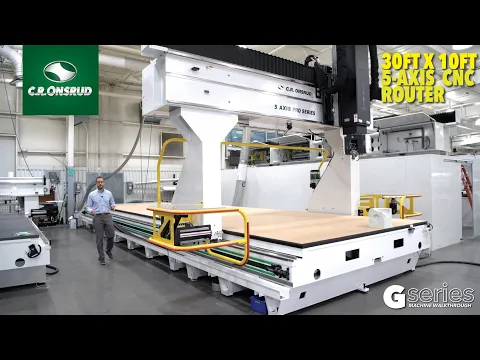

MACHINE VIDEO
